Product features

• ▪ 7 inch color touch screen;

• ▪ Support multi language, convenient for different users;

• ▪ Built in environment automatic detection program, automatically detect the test environment and remind users;

• ▪ Rs232/usb interface, which can be controlled by PC and print test report.

Product parameters

• Product model:


  Surge waveform


  Maximum output current


  Surge polarity


  Output impedance


  Surge triggering mode


  frequency


  Interval time


  Working power supply


  ambient temperature

• SUR 20KA


  Short circuit current wave: 8/20 us


  20kA


  Positive, negative, positive before negative, negative before positive


  0.5Q、0.75Q


  Automatic, manual


  1 ~ 9999 times


  5~9999s


  AC220V 50/60Hz


  15 ℃~35 ℃

Product recommendation

Single Phase 10A Voltage Dips Generator

Model：VDT S10

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Learn more

DC Voltage Dips Generator

Model：VDT DC

DC voltage dips and interruptions generator is a test device that simulates voltage dips, short interruptions, and voltage variations on DC input power port. VDT DC is specially designed for power fail simulation of DC systems. The product adopts a modular digital DC power supply system to provide customers with high-power DC output sources to meet the testing of different DC power systems. Products meet the requirements of standards IEC/EN 61000-4-29 and GB/T 17626.29.

Learn more

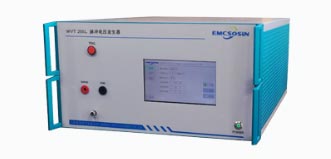

Pulse voltage generator WVT 255L
