Product features

• ▪ 7-inch touch screen operation;

• ▪ Support multi language, convenient for different users;

• ▪ Built in environment automatic detection program, automatically detect the test environment and remind users;

• ▪ Programmable operation, realizing the setting function with one key;

• ▪ Built in international standard grade parameters, easy and fast operation;

• ▪ The discharge module can be easily replaced to meet the test requirements of different standards;

Product parameters

• Product model


  output voltage


  Output voltage polarity


  Energy storage capacitance


  Discharge resistance


  Rise time of discharge current


  Air discharge holding time


  Discharge mode


  Discharge mode


  Trigger mode


  Working mode


  Discharge interval


  Discharge times


  Equipment working power supply


  ambient temperature

• ESD 20K


  0.2~±20kV


  Positive, negative, positive before negative, negative before positive


  150pF


  330Q


  0.6~1ns


  ≥5s


  Contact discharge, air discharge


  Single discharge, continuous discharge


  Automatic, manual and gun body control


  IEC level mode, programming mode, voltage ramp up mode


  0.05~9.99s


  1~9999


  AC220V ± 10%,50/60Hz


  15C~35℃

Product recommendation

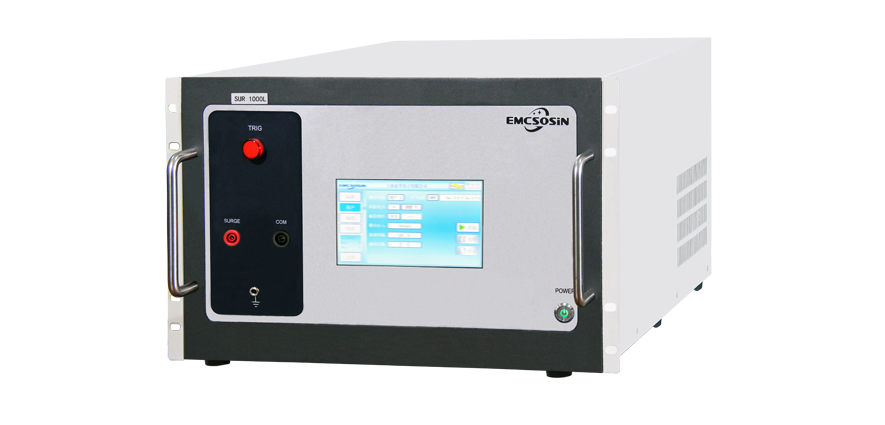

Lightning surge generator sur 1000L

Model：SUR 1000L

Lightning surge generator sur 1000L is an anti surge test product specially designed for semiconductor devices such as anti surge protection and communication products. The product meets the requirements of iec61000-4-5, gb/t17626.5, gr-1089-core and other relevant standards.

Learn more

Lightning surge generator sur 350

Model：SUR 350

Lightning surge generator sur 350 is an anti surge test product specially designed for semiconductor devices and communication products such as anti surge protection. The product meets the requirements of iec61000-4-5, gb/t17626.5, gr-1089-core and other relevant standards.

Learn more

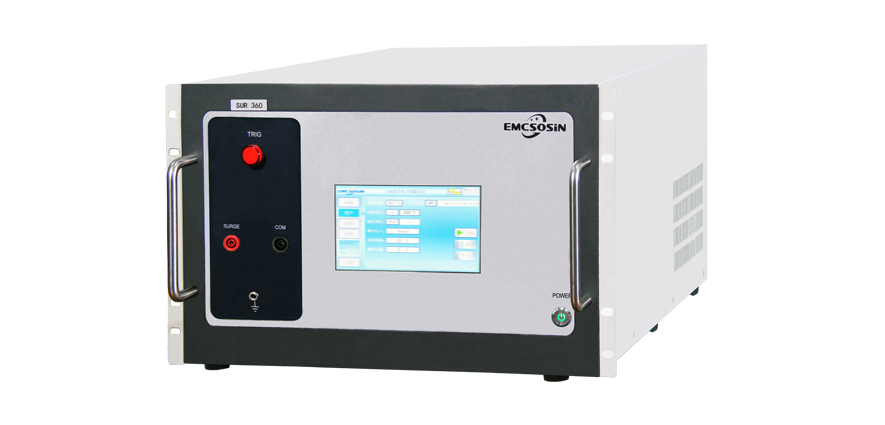

Lightning surge generator sur 360
